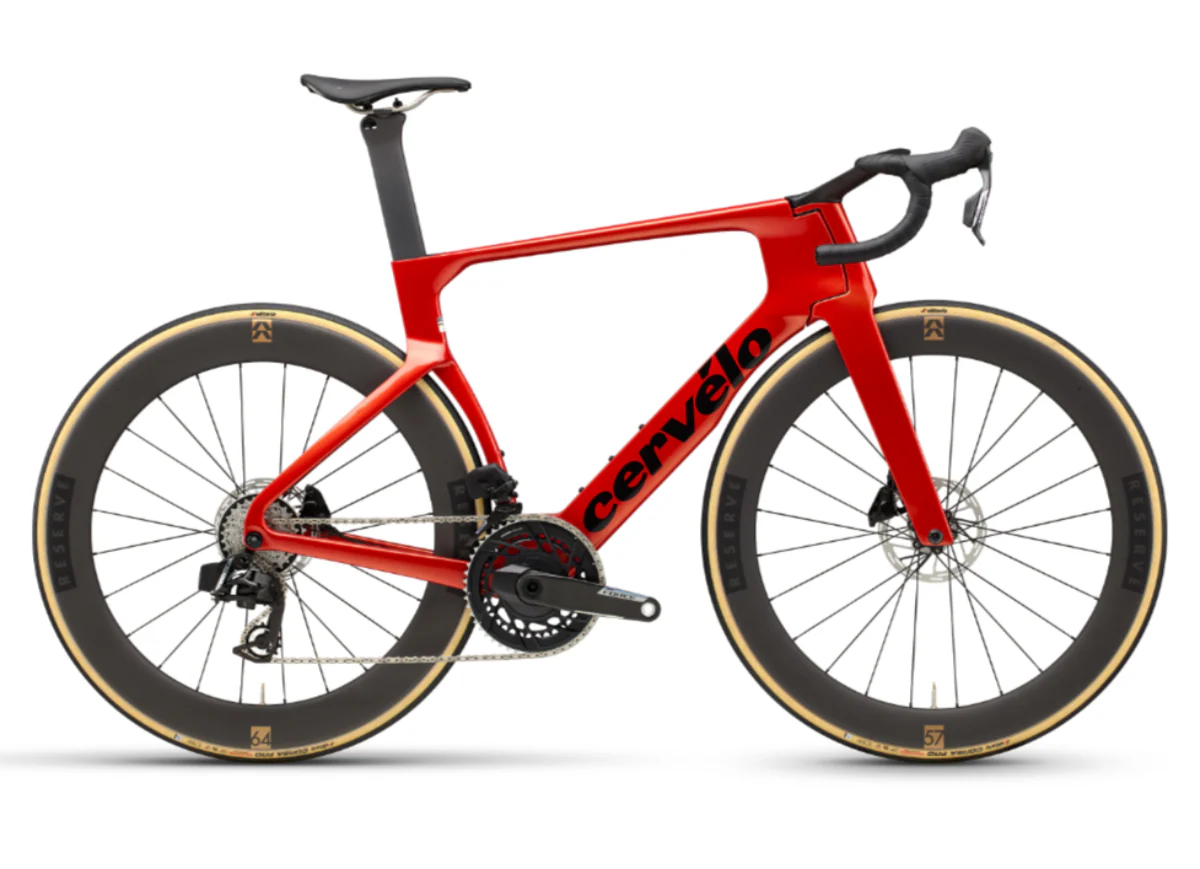

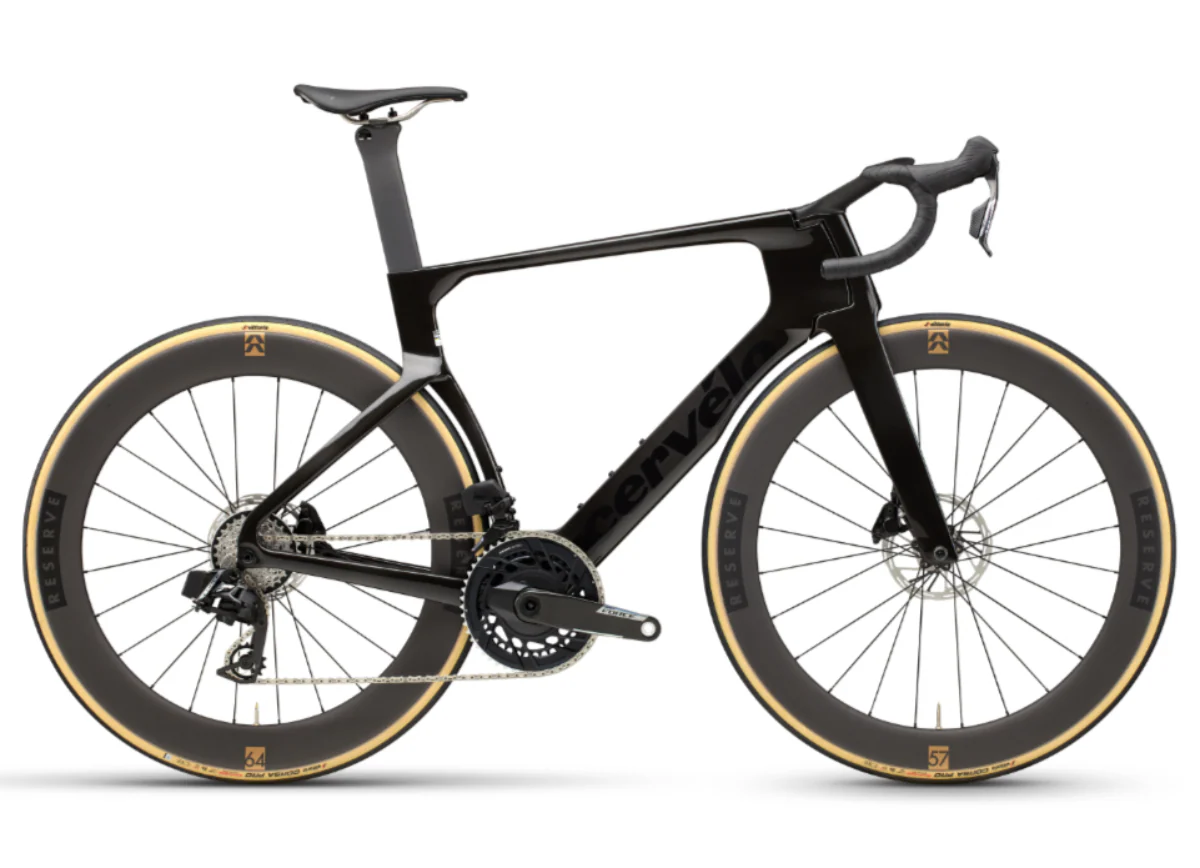

Cervelo S5 Force - 2026 Bike

The 2026 Cervelo S5 Force is engineered for elite performance, combining aerodynamic efficiency with lightweight construction. Its advanced frame design and integrated components optimize speed and handling, making it ideal for competitive road cycling. Precision shifting and responsive braking ensure control in varied conditions, while the sleek geometry supports aggressive riding positions without sacrificing comfort. This bike is a top choice for riders seeking cutting-edge technology and race-ready capability.

Fork	Cervélo All-Carbon, Bayonet S5 Fork
Headset	FSA SL IS2 1-1/8, 36° x 45° / 1-3/8, 36° x 45°
Seatpost	Cervélo SP34 Carbon
Seatpost Sizing	Size 48 - 0mm, Size 51 - 0mm, Size 54 - 0mm, Size 56 - 0mm, Size 58 - 15mm, Size 61 - 15mm
Left Shifter/Brake	SRAM Red AXS E1
Right Shifter/Brake	SRAM Red AXS E1
Rear Derailleur	SRAM Red XPLR AXS E1
Brake Rotors	SRAM Paceline X Centerlock
Front Thru Axles	Cervélo Aero Thru Axle Front, M12x1.5mm, 122mm length
Rear Thru Axles	Cervélo Aero Thru Axle Rear, M12x1.0mm, 169mm length
Bottom Bracket	SRAM DUB Ceramic, BBright
Crankset	SRAM Red 1 AXS E1, 50T Aero, DUB, with power meter
Crank Sizing	Size 48 - 165mm, Size 51 - 165mm, Size 54 - 170mm, Size 56 - 170mm, Size 58 - 172.5mm, Size 61 - 172.5mm
Handlebar Sizing	Size 48 - 36cm, Size 51 - 38cm, Size 54 - 40cm, Size 56 - 40cm, Size 58 - 40cm, Size 61 - 40cm
Stem Sizing	Size 48 - 80mm, Size 51 - 90mm, Size 54 - 100mm, Size 56 - 100mm, Size 58 - 110mm, Size 61 - 120mm
1-piece Handlebar/Stem	Cervélo HB19 Carbon
Saddle	Selle Italia NOVUS BOOST EVO SuperFlow Carbon
Cassette	SRAM Red XPLR E1, 10-46T, 13-Speed
Chain	SRAM Red E1
Front Wheel	Reserve 57TA, DT Swiss 180, 12x100mm, 24H, centerlock, tubeless compatible
Rear Wheel	Reserve 64TA, DT Swiss 180, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible
Tire	Vittoria Corsa Pro TLR G2.0 700x29c
Max Tire Width	34mm

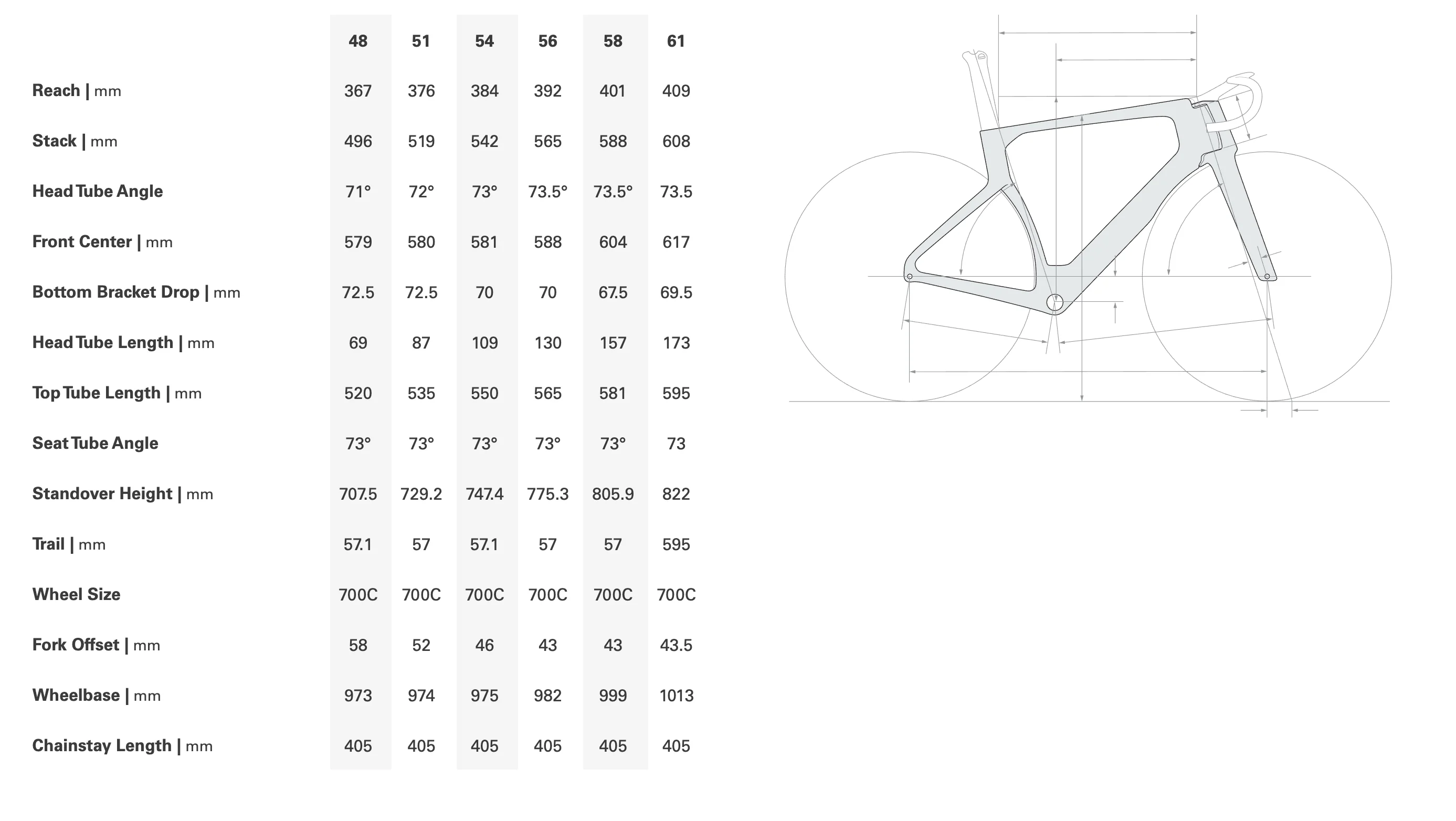

Geometry
